OCS-B Compact Crane Scale - Cap. 1 Ton to 5 Tons

The Rotor Electric OCS-B is a highly accurate general purpose crane scale used for medium capacity loads. It's easy to install and operate. It comes in an aluminum die-cast enclosure for ultimate durability and performance and a 360° swivel hook.

Delivery: 3-4 Week
Ships from Vancouver, Canada.

ACCURACY CLASS:	OIML III
TARE RANGE:	100% F.S.
ZERO RANGE:	4% F.S.
SAFE OVERLOAD:	120% F.S.
ULTIMATE OVERLOAD:	400% F.S.
OVERLOAD ALARM:	100% F.S.+9e
BATTERY:	6V/10Ah
BATTERY LIFE:	>100 hour
ADAPTOR:	9V/1500mA
TEMPERATURE RANGE:	-10° to +40°
REMOTE DISTANCE:	10m

Functions

Zero
Tare in/out
Hold
Low voltage alarm
Battery supervision
Overload alarm/record
Digital calibration
3-point linearity correction
kg/lb switchable
Gravity acceleration value set
Tare set
Total/delete/clear total
View total
Resolution switch
Auto off set
Idle set
Display luminance set
Display speed set
Anti-motion set

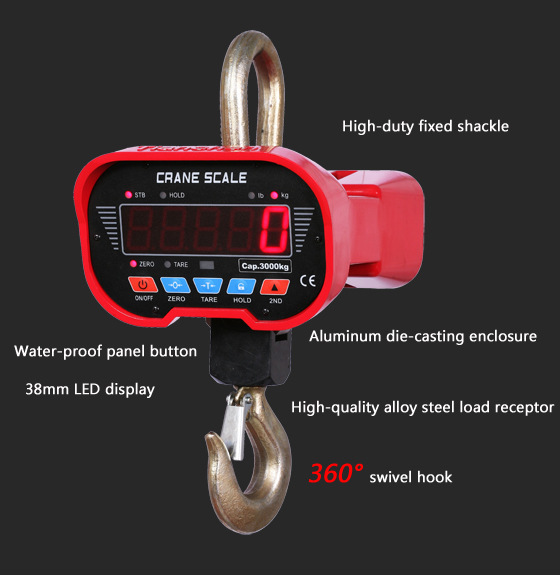

Features

High-quality alloy steel load receptor
Aluminum die-casting enclosure
38mm LED display or 30mm LCD display
High-duty bow shackle
High-duty eye hook
High capacity rechargeable battery
Stainless steel button
Infrared remote controller
Capacity: 1000kg - 20000kg

Adaptor

Rechargable Battery

Remote Controller

Max. cap. (kg)	Min. cap. (kg)	Division (kg)	Resolution (n)	G.W. (kg)	Dimension (cm)
1000	10	0.5	2000	16	412940
2000	20	1	2000	16	412940
3000	20	1	3000	16	412940
5000	40	2	2500	23	412942
