Wire Rope Hoist Load Limiter

When your load exceeds the lifting capacity of you crane, load limiters will cut power to your up control, preventing the operator from lifting the load. This can save your life, avert lost downtime from a damaged crane, and prevent expensive accidents and insurance claims.

If you are using a hoist that is not equipped with overload protection or require a new load limiter, let us know. We will supply you with a load limiter that meets your exact needs. Whatever your single line load capacity, work environment, or wire rope size, your limit switch will be custom made to your requirements.

These load limiters can be installed onto a hoist at the rope's dead end or equalizer sheave. It can be designed for other installations with a power reel or remote control. You'll find these limit switches to be extremely easy to install - you simply clamp them onto the wire rope without having to cut the rope or make modifications to the hoist.

The load limiter is activated from the deflection of the rope when the hook lifts the load. This increases the tension of the rope, which activates the limit device. The device can be electrically connected with the hoist's switch for either up or down motion, depending on the motion to be controlled. As well, it can work as both an upper limit switch and load limit switch as a special order.

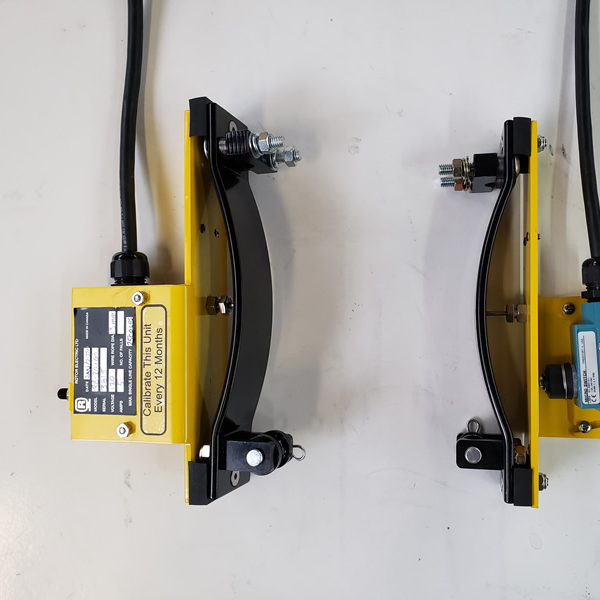

Model RB

Model RB

All Load Limit Switches provide alarm via the Tension Plate Activated Switch. All models are available in a slack wire rope. A regular limit switch is with a single pole, but on request you can add a double pole (2 speeds) for special applications.

Request Pricing
MODEL NO. DESCRIPTION WIRE ROPE
RB-10 Tension plate activated, 6 inch up to 9 mm wire rope
RB-20 Tension plate activated, 10 inch 10 to 16 mm wire rope
RB-300 Tension plate activated, 12 inch 17 to 25 mm wire rope

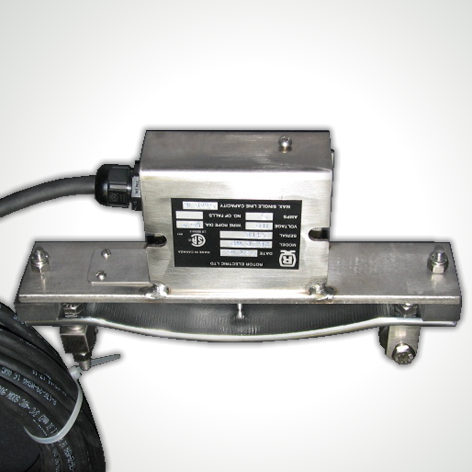

Model RB-SS - Stainless Steel

Model RB-SS - Stainless Steel

These limit switches are manufactured using stainless steel. This increases the lifetime of the switch when used in corrosive or acidic environments. They are also appropriate for outdoor use

Request Pricing
MODEL NO. DESCRIPTION WIRE ROPE
RB-10-SS Tension plate activated, Stainless steel up to 9 mm wire rope
RB-20-SS Tension plate activated, Stainless steel 10 to 16 mm wire rope
RB-300-SS Tension plate activated, Stainless steel 17 to 25 mm wire rope

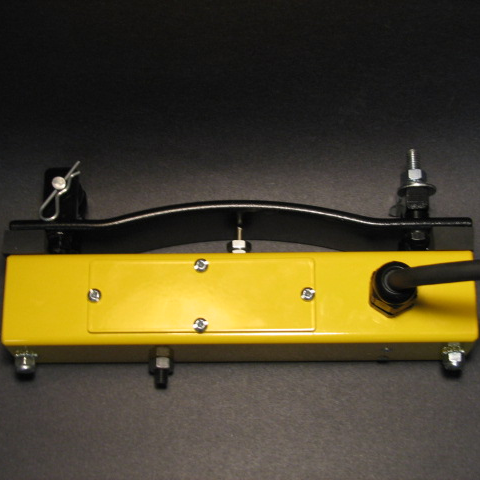

Model RB-DF - Dual Function

Model RB-DF - Dual Function

The Dual Function Limit Switch is used as a Load Limit Switch and an Upper Limit Switch.

Request Pricing
MODEL NO. DESCRIPTION WIRE ROPE
RB-20-DF load & upper limit up to 16 mm wire rope
RB-300-DF load & upper limit 17 to 25 mm wire rope

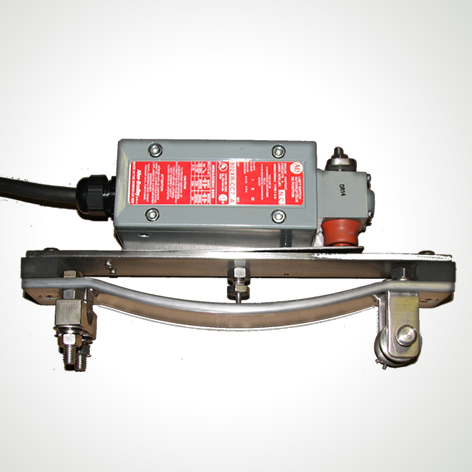

Model RB-EXP - Explosion Proof

Model RB-EXP - Explosion Proof

Explosion Proof Limit Switch designed for use in hazardous locations.

Request Pricing
MODEL NO. DESCRIPTION WIRE ROPE
RB-10-EXP Explosion Proof Tension Plate activated up to 9 mm wire rope
RB-20-EXP Explosion Proof Tension Plate activated 10 to 16 mm wire rope
RB-300-EXP Explosion Proof Tension Plate activated 17 to 25 mm wire rope
