Wire Rope Hoist Load Limit Switch

Wire Rope Hoist Load Limit Switch
When your load exceeds the lifting capacity of you crane, load limit switches will cut power from lifting your load higher, forcing you to move the load down. This can save your life, avert lost downtime from a damaged crane, and prevent expensive accidents and insurance claims.

If you are using a hoist that is not equipped with overload protection or require a new load limit switch, let us know. We will supply you with a limit switch that meets your exact needs. Whatever your single line load capacity, work environment, or wire rope size, your limit switch will be custom made to your requirements.

These load limit switches can be installed onto a hoist at the rope's dead end or equalizer sheave. It can be designed for other installations with a power reel or remote control. You'll find these limit switches to be extremely easy to install - you simply clamp them onto the wire rope without having to cut the rope or make modifications to the hoist.

The load limit switch is activated from the deflection of the rope when the hook lifts the load. This increases the tension of the rope, which activates the limit device. The device can be electrically connected with the hoist's switch for either up or down motion, depending on the motion to be controlled. As well, it can work as both an upper limit switch and load limit switch as a special order.

Get a FREE ESTIMATE on Your Load Limit Switch.

Custom built to your needs. Choose from:
100 lbs to 10 tons single line load capacity
Radio remote control
Explosion proof for volatile work environments
Weather proof for outside use
Dual fuction: load limit switch and upper limit switch
Model RB Model RB
All Load Limit Switches provide alarm via the Tension Plate Activated Switch. All models are available in a slack wire rope. A regular limit switch is with a single pole, but on request you can add a double pole (2 speeds) for special applications.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-10 Tension plate activated, 1 Speed (8 in.) 100 lbs to 1 ton, per line
RB-20 Tension plate activated, 1 Speed (10 in.) 1 ton to 3 Ton, per line
RB-300 Tension plate activated, 1 Speed (12 in.) 3 ton to 5 Ton, per line
RB-10 short Tension plate activated, 1 Speed (6 in.) 100 lbs to 1 ton, per line
RB-20 short Tension plate activated, 1 Speed (6 in.) 1 ton to 3 Ton, per line
RB-300 short Tension plate activated, 1 Speed (6 in.) 3 ton to 5 Ton, per line

RB-10-2S Tension plate activated, 2 Speeds 100 lbs to 1 ton, per line
RB-20-2S Tension plate activated, 2 Speeds 1 ton to 3 Ton, per line
RB-300-2S Tension plate activated, 2 Speeds 3 ton to 5 Ton, per line
Model RB-SS - Stainless Steel Model RB-SS - Stainless Steel
These limit switches are manufactured using stainless steel. This increases the lifetime of the switch when used in corrosive environments.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-10-SS Tension plate activated, Stainless steel 100 lbs to 1 ton, per line
RB-20-SS Tension plate activated, Stainless steel 1 ton to 3 Ton, per line
RB-300-SS Tension plate activated, Stainless steel 3 ton to 5 Ton, per line

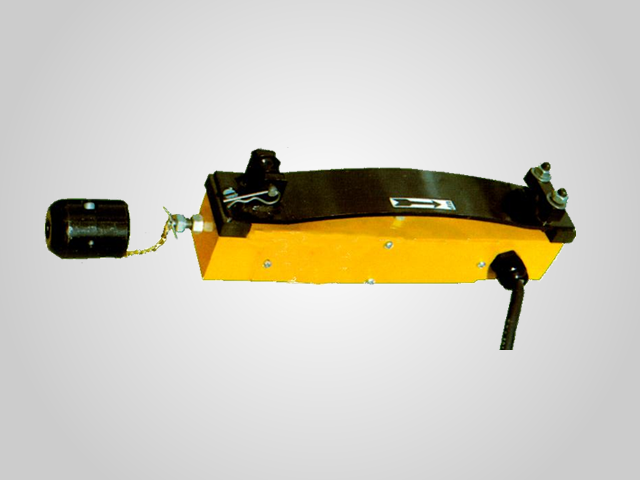

Model RB-DF - Dual Function Model RB-DF - Dual Function
The Dual Function Limit Switch is used as a Load Limit Switch and an Upper Limit Switch.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-20-DFSS Stainless steel + load & upper limit 1 ton to 3 Ton, per line
RB-300-DFSS Stainless steel + load & upper limit 3 ton to 5 Ton, per line

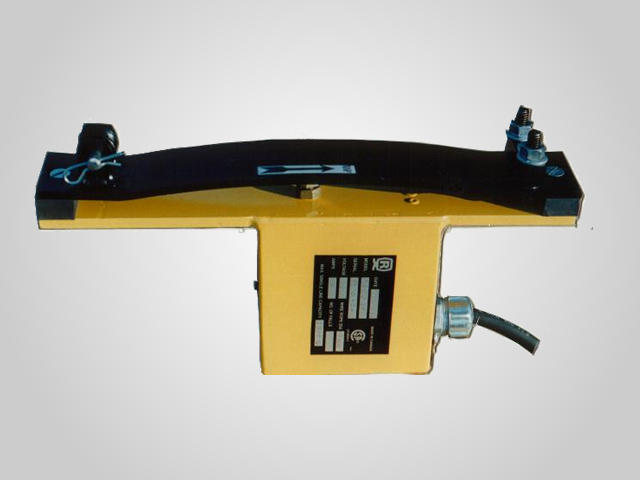

Model RB-WP - Weather Proof Model RB-WP - Weather Proof
A Weather Proof Limit Switch designed for outdoor use.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-10-WP Weather Proof Tension Plate 100 lbs to 1 ton, per line
RB-20-WP Weather Proof Tension Plate 1 ton to 3 Ton, per line
RB-300-WP Weather Proof Tension Plate 3 ton to 5 Ton, per line

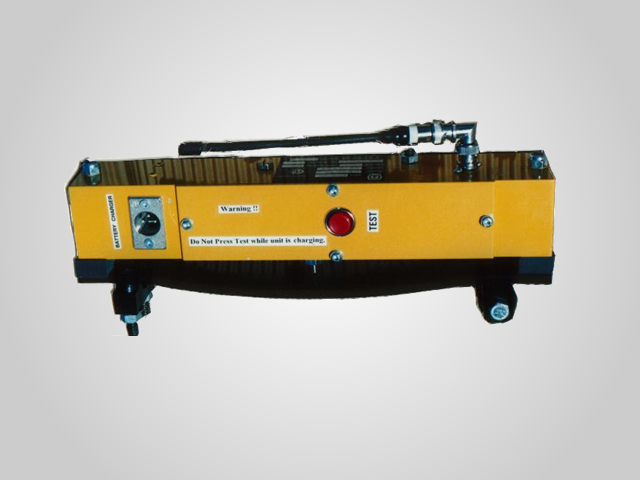

Model RB-RR - Radio Remote Control Model RB-RR - Wireless
A wireless radio remote load limit switch. This load limit switch can be activated from up to 350 ft and has a unique transmitting frequency. Perfect for single line hoists.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-10-RR Tension plate activated radio control  100 lbs to 1 ton, per line
RB-20-RR Tension plate activated radio control  1 ton to 3 Ton, per line
RB-300-RR Tension plate activated radio control  3 ton to 5 Ton, per line
Model RB-EXP - Explosion Proof Model RB-EXP - Explosion Proof
Explosion Proof Limit Switch designed for use in hazardous locations.
[Order Now]
MODEL NO. DESCRIPTION LOAD RANGE
RB-10-EXP Tension plate activate for hazardous locations 100 lbs to 1 ton, per line
RB-20-EXP Tension plate activate for hazardous locations 1 ton to 3 Ton, per line
RB-300-EXP Tension plate activate for hazardous locations 3 ton to 5 Ton, per line
